MultiPHAN™
Daily Isocenter Checks Made Easy
Ensure isocenters match from lasers to EPIDs to CBCT.
MultiPHAN™ is a practical, cost-effective tool for Radiation Therapists to perform daily isocenter checks and meet TG-142 requirements.
Efficient Daily Alignment Verification
Comprised of deliberately placed rods, two low-Z ceramic beads and scribe lines, MultiPHAN supports efficient daily verification of the alignment of imaging modalities, lasers, and surface-guided alignment systems.

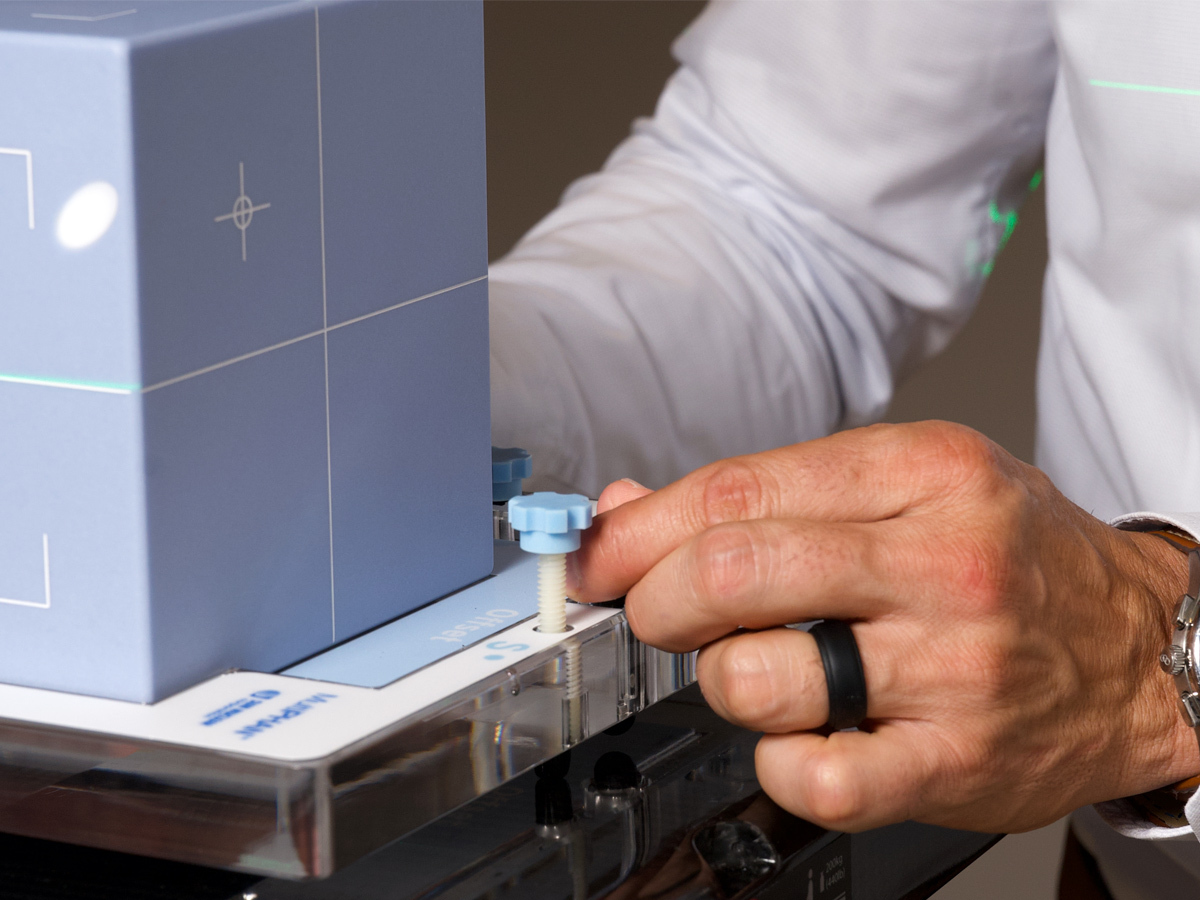

Smart design features, such as a positioning stand, allow easy and precise shifting from isocentric alignment to the offset target, and enact rotations to test registration and 6 Degrees of Freedom couch repositioning.
Verify All Daily IGRT Alignments in Support of TG-142
MultiPHAN is simple, yet comprehensive, and can validate alignment of:
- Treatment beam isocenter
- Light field
- Field sizes
- Lasers
- kV CBCT
- MV CBCT
- MV EPID
- TomoTherapy®MVCT
- Treatment couch
- Optical Guidance systems
Start at the CT Scanner

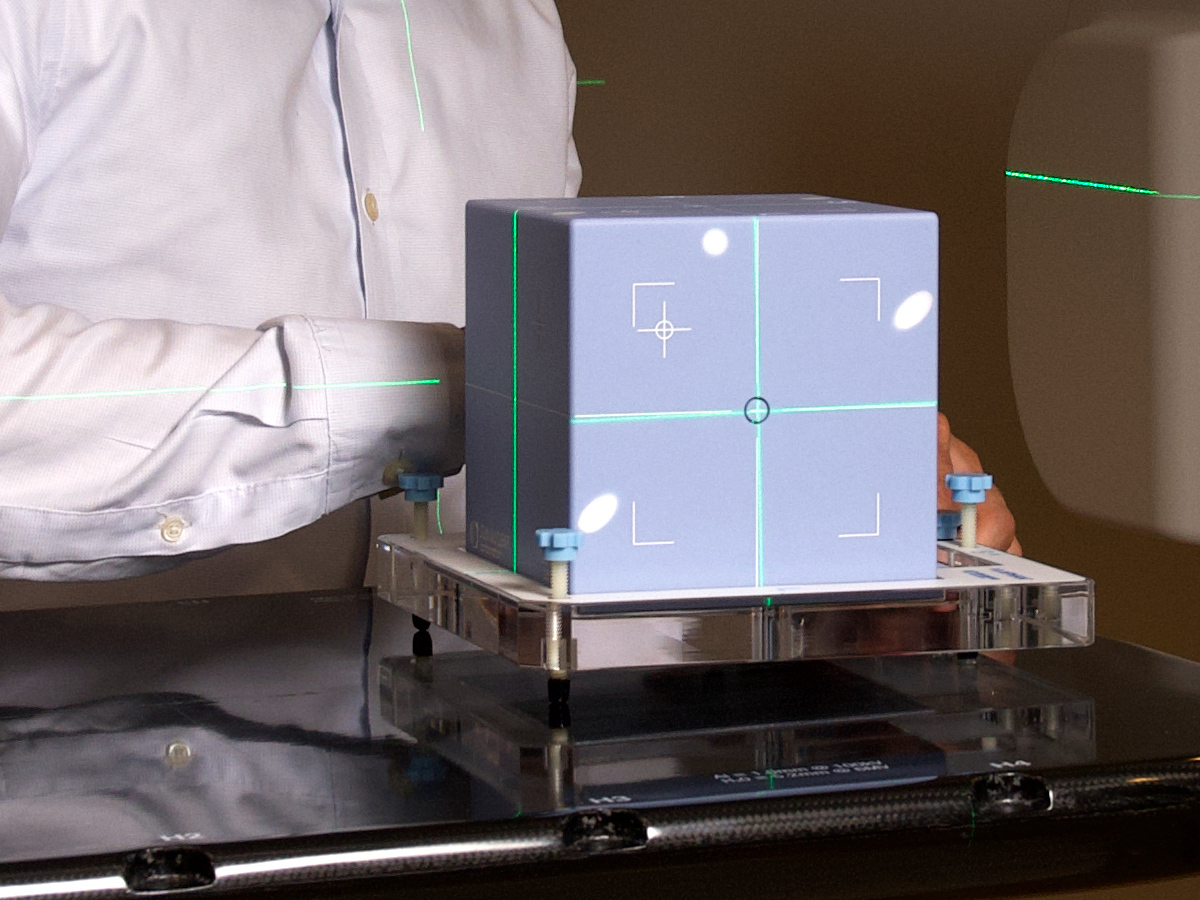

Simply align the MultiPHAN with lasers and collect MVCT images. Register and re-align as necessary, and confirm shifts are within tolerance. Repeat this process with kV portal images, CBCT images, light field and ODI.
Move to the Treatment System
At the treatment system, shift the MultiPHAN from an aligned phantom. Image and determine offsets in the shifted position.
Use couch or other correction mechanism to move the phantom back to the original position. Image the phantom and confirm it’s back in the original position.
Specifications
Alignment System | 5 bone-equivalent rods, compatible with CBCT, MV EPID, kV imaging, 6D couches, and more |
Isocenter Marker | Low-Z ceramic bead. Encircled by groove on cube faces to check alignment in planar images |
Offset Marker | Low-Z ceramic bead at a fixed offset from isocenter, for registration and repositioning |
Light Field Test | Scribe lines corresponding to a 10 cm x 10 cm light field |
Tissue Equivalent | HE CT Solid Water® base construction, with Gammex bone-mimicking registration rods |
Easy Alignment | Thin white laser scribe lines extend the full phantom length |
Stand | Precision shifts of cube from isocentric alignment to offset target with discrete positioning stand; can also enact rotations to test registration and 6D repositioning |
Case | Included |
Dimensions | 14 cm x 14 cm x 14 cm |
Weight | 2.7 kg (6.0 lbs) |
