A five channel digital Flame Photometer

Ready to use straight out of the box General Purpose Flame Photometer

Ready to use straight out of the box

General Purpose Flame Photometer!


The BWB XP is the first and only 5 channel flame photometer

with simultaneous detection and display of all 5 elements.


The BWB XP was designed from the ground up, using new, innovative and modern technology to give unsurpassed levels of accuracy, usability and reliability while significantly reducing analysis time. Our customers do not need to waste valuable time changing filters and re-calibrating when a different measurement is required, as is a common requirement in all other Flame Photometer designs from 1951 to the present.

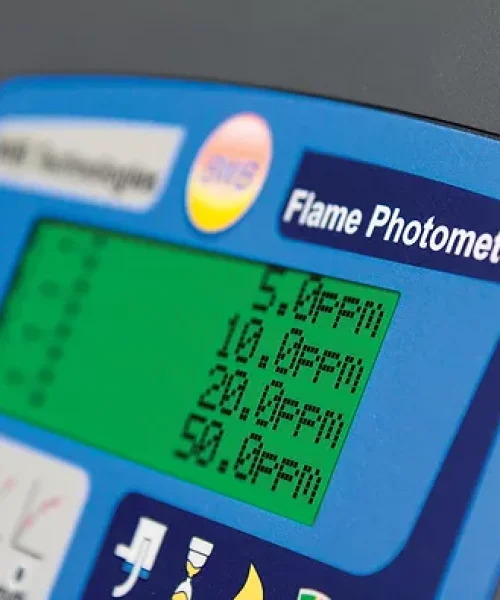

With clean lines and contemporary bright colour schemes, the XP looks exceptionally modern and will fit into any laboratory. The instrument has a large LCD display, which can be viewed easily from any angle.


Our metal casework provides a sturdy portable instrument and enables future recycling opportunities. ROHS compliant components and materials are used wherever possible.

The BWB Carbon Footprint is exceptionally low, in keeping with corporate objectives of being a responsible manufacturer.


Unlike other manufacturers who charge extra for vital accessories, BWB include everything required to use the product straight out of the box. Just add Gas!! (Propane, LPG or butane).


We also provide as standard, data sharing via USB from the BWB XP to your PC. This ties the output of the BWB Flame Emission Spectrometer (FES) to the Internet or your company intranet systems and facilitates Distributed Control which is vital for Multi-National companies, Universities and various Governmental agencies.


Technical Data

Sample rate

2 – 3.5ml/min

Tubing materials

Silicone and Tygon®

Required desk space for Instrument

50cm (H) x 45cm (W) x 45cm (D)*

For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.

Instrument size

XP Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)

65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)


XP Flame Photometer – 14kg (30.8lbs)

Shipping – 25kg (55.1 lbs)

Optimal range

Single point calibration

Na 0.1 – 60ppm

K 0.05 – 100ppm

Li 0.05 – 50ppm

Ca 1.0 – 100ppm

Ba 1.6 – 100ppm

Multi Point Calibration

Na 0.1 – 1000ppm

K 0.05 – 1000ppm

Li 0.05 – 1000ppm

Ca 1.0 – 1000ppm

Ba 5.0 – 3000ppm


<1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation).


Na/K/Li = <1% to each other when equal in concentration at <100ppm


Limit of detection (LOD) and
limit of quantification (LOQ)

LOD                     LOQ

Na – 0.03ppm    Na – 0.1ppm

K – 0.02ppm      K – 0.05ppm

Li – 0.02ppm     Li – 0.05ppm

Ca – 0.3ppm      Ca – 1ppm

Ba – 1.6ppm      Ba – 5.0ppm


Time to stability

Less than 15 seconds after sample is introduced into the flame.


Ions measured

Simultaneous measurement of Na, K, Li, Ca, Ba




0-2.5 volt output (based on sample concentration linked to element of users choice)

Optional 4-20mA output in place of the above

Optional integrated printer

.csv and .pdf generated reports and files via FP-PC software


Recommended minimum warm up time based on ambient temperature

21ºC – 25 minutes


Power requirements

100V – 250V AC at 50 or 60Hz automatically selecting


Fuel requirement

Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min

*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.



LCD, four line, alpha numeric, back lit.
