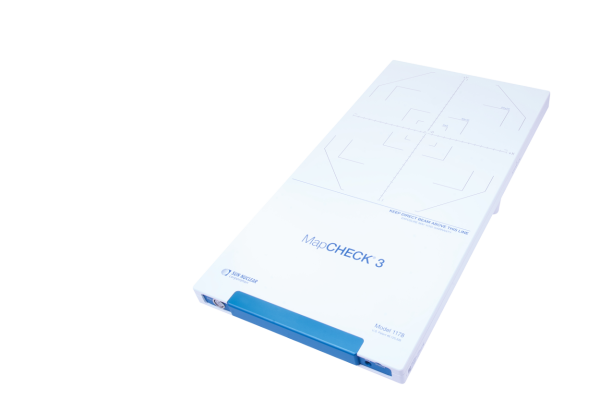

MapCHECK®3

The Benchmark for 2D IMRT QA

MapCHECK®3 is the gold standard for IMRT QA requiring large field measurements.

 It offers the highest detector density, highest sensitivity, and largest field size of 2D arrays. Plus, it’s uniquely TG 218-compliant.

Built for Pre-Treatment IMRT QA
SunPoint® 2 Diode Detectors placed uniformly throughout the array offer high sensitivity and proven stability in a large active field size (26 cm x 32 cm). A real-time electrometer measures every pulse with 50-millisecond updates.

Easy Comparison Features
Simply import the QA files from your TPS, and let SNC Patient™ software compare dose distribution from the plan file to actual measured values. Measured points outside of acceptance criteria are highlighted for high and low dose.

Specifications

Device Specifications

Detector Type

SunPoint® 2 Diode Detectors

Detector Quantity

1,527

Field Size (cm)

26 x 32

Detector Spacing (mm)

7.07

Active Detector Area (mm x mm)

0.48 x 0.48

Active Detector Volume (mm3)

0.007

Detector Sensitivity (nC/Gy)

15

Sampling Frequency (ms)

50

Detector Stability

1%/kGy at 6 MV

Dose Rate Dependence

±1.5% over the range of 100 cGy/min to 1400 cGy/min

Inherent Buildup (g/cm2)

1.5

Inherent Backscatter (g/cm2)

2.3

Radiation Measured

Photons: Co-60 to 25 MV

Number of Connection Cables

Single power/data cable

Dimensions (L/W/H)

56.0 cm x 29.2 cm x 3 cm

Weight (kg)

5.6



System Requirements (SNC Patient)

Operating System

Windows 7, Windows 8.1, Windows 10 Professional

CPU

Recommended 2.4 GHz or better, multi‑core (2 or more cores)

RAM

Recommended 4 GB or more

Hard Drive Space

Recommended 5 GB or more

Compatibility

Rotational Therapy

RapidArc®, VMAT, TomoHelical™ IMRT, TomoDirect™, 3D Conformal, Dynamic Wedge

Treatment Planning Systems

Pinnacle®, Eclipse®,Monaco®, iPlan®, and any TPS system that can export DICOM data

Deliveries

FFF & non-FFF
